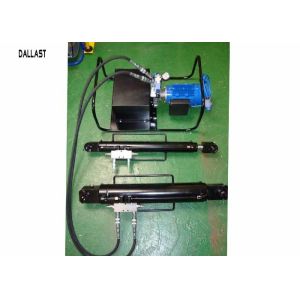

Hydraulic Power Pack Work with Double Acting Cylinder Remote
Control 220 Voltage
Application:
Offshore Oil and Gas
Marine and Deck Equipment
Lifting Equipment
Industrial
Test Equipment
Standard Features of our power pack design:
· Driven by Continuous-duty rated electric motor or diesel engine
· Modular Type of integrated manifold block to eliminate as much
hard piping as possible.
· Built for industrial, marine and offshore oil and gas
application.
· Pump control in an opened-loop circuit (suction circuit), in
closed-loop circuit (boosted circuit) and semi opened-loop with
make up.
· Hydraulic control system with constant displacement pump,
variable displacement pump, load sensing & variable displacement
pump, load sensing & constant displacement pump and system with
secondary control.
· Design pressure range into 3,000Psi, 5000Psi, 6000Psi and up to
10,000 Psi (690 Bar).
· Proper piping, filtration and cooling system design.
Low-height cylinders are built to provide the maximum power to
height ratio and are ideal for confined spaces where other
cylinders will not fit. The cylinder is another type of low-height
cylinder engineered with mounting holes for easy installation.
| Specification |
| Reservoir Capacity | 1.32 gal. |
| Outlet Port (in.) | 9/16-18 SAE O-ring port |
| Max. PSI | 3000 PSI, 5000 PSI, 7000 PSI etc. |
| Volts | 220V |
| Max. RPM | 3,000 |
| Dimensions L x W x H (in.) | 18 5/16 x 8 x 8 1/8 |
| Manufacturer's Warranty | 1 year Limited Warranty |
| Ship Weight | 31.0 lbs |
| Displacement (cc) | 2.4 |
| Listing Type | NEW |
| Stock number | S63 |
| Refcode | TA417601 |
| Tank capacity | 220L |
| Please feel free to contact us, if needed. |
1. Can I use double acting cylinder with this unit?
Yes. But some mode just for the single acting cylinder.
2. How is it mounted. I don’t see any brackets or mounting plates?
(1) There are two mounting holes on the bottom of the block that
are 3-1/4" inch apart. The thread size is 3/8" 16TPI.
(2) There are threaded holes on each side and bottom of the metal
block in front of the pump.
3. What fluid should be use in this unit?
The recommended fluid for this power unit is ATF (automatic
transmission fluid) DEXRON-III.
Warranty:
We offer 12 months warranty.
From the date of delivery within 12 months, our company is
responsible for the replacement, repair or return. The user is a
hydraulic cylinder propulsion, to improve the inherent quality of
the fuel tank is the purpose of our factory production and the
pursuit of goals.
We manufacture a range of Hydraulic Power Unit. These products are
available with OEM & ODM.
